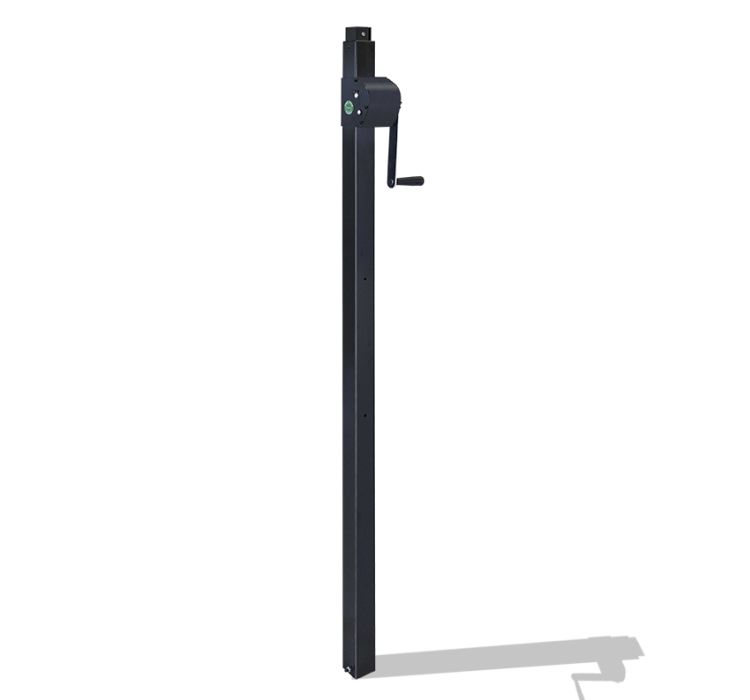

Telescopic lifter B3900

Ref.: PF80212

Rack and pinion telescopic lifting system
- Automatic secutiry
- Height adjustment to the nearest mm
- Maximum height: 3.35
- Minimum height: 1.80
- Maximum capacity 100kg

More details

3,35m

Lifter

European standards EN13157-A1

Fixed crank handle

100kg

In stock

Reseller personalised quote

Additional information

Description

Technical details

Unit weight : 14 Kg

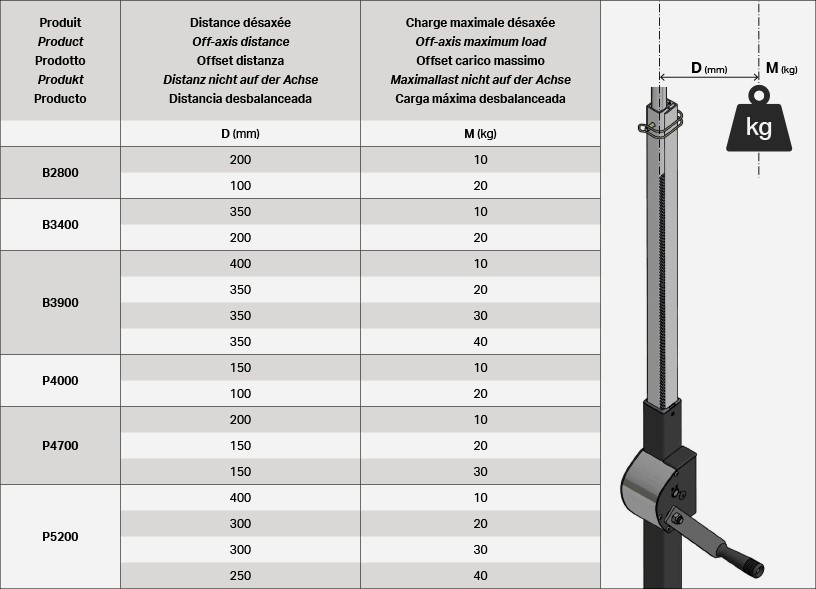

Offset maximum load : 40kg/200mm
Brake : Permanent
Handle length (mm) : 200mm
Handle : Fixed
Maximum load : 100kg
1 turn of the handle : Elevation by 50mm
Adaptor output : ø35

Download document(s)

User manual Dimensions – B-series
