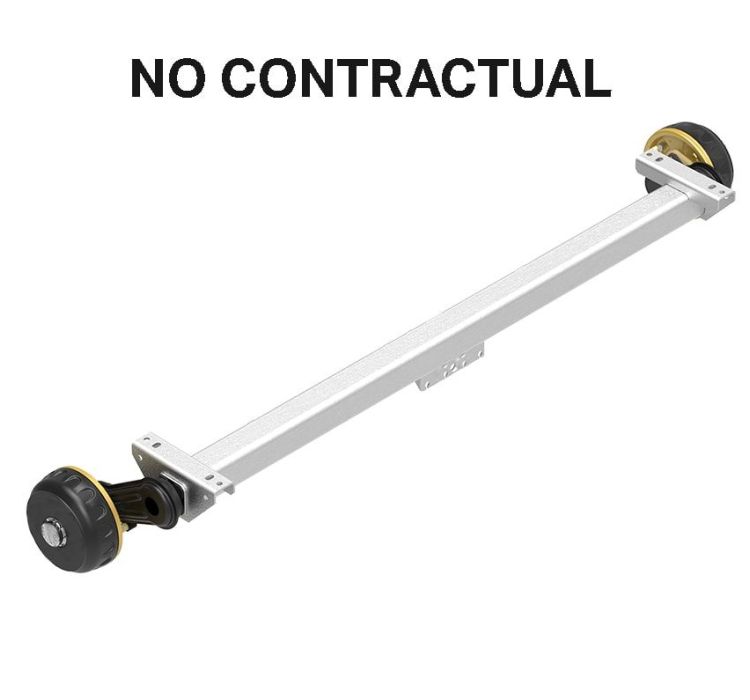

Braked axletree Knott 1300kg (single axle)
Ref.:
PR01031
€753.32
incl. vat
Made-to-order,
available within 2 weeks
available within 2 weeks
Original ref: EK04W3458R47144
manufacturer: AIN
FC: 1440
For trailers GVWR 1800kg (double axletrees)
-
45
- Other technical features : Sealed/braked hub 20-2425/1
- Original ref. : EK04W3458R47144:AIN
- Unit weight : 45 Kg
- Year : 2000-2015
- Builder : AIN
- Support distance : 1440mm
- Manufacturer : Knott
- Hub/drilling/offset : Ø56 / 4x M14X1,5
- GVW : 1300kg (essieu)
- Axle B/NB : Yes
- Section : tube 80mm²
- Type : VGB13M
- Track : 1865mm
- Included : Wheel bolts not included
- Dimensioned drawing/mounting/implementation : Axletrees
- Drilling : 130x4 (diagonal dimensions) D=20
