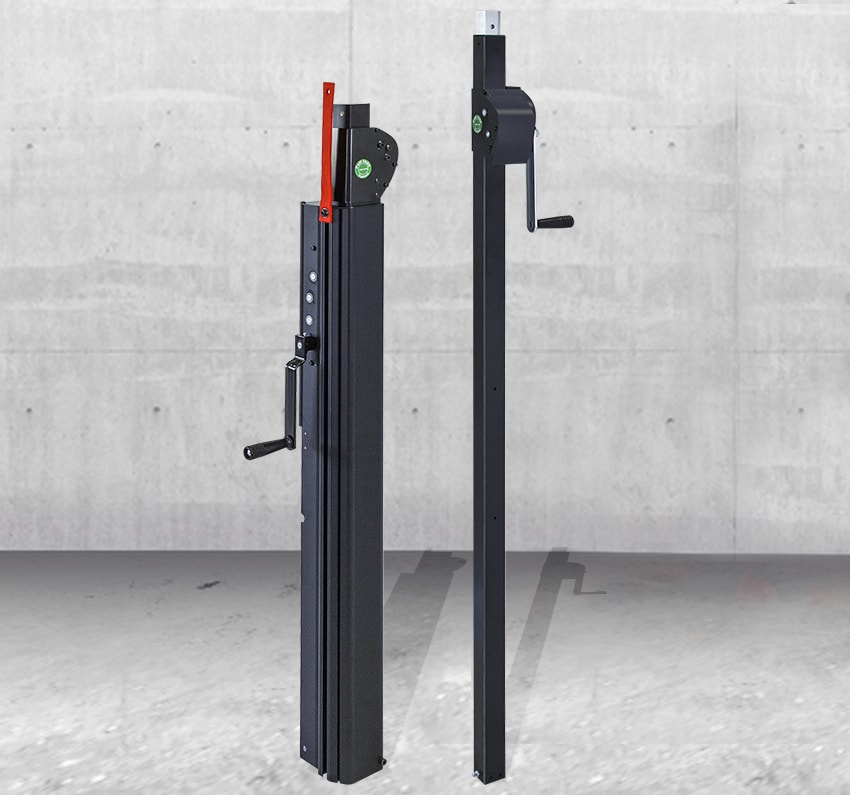

Lifters without legs

Goliath offers integrators and builders a range of telescopic lifting systems ready to use, making it possible to lift loads from 10 to 200 kg per lifter, up to 5 metre high.

Goliath telescopic lifters are a technical and economical alternative to lifting systems built from winches, cables, pulleys and other structural elements.

These telescopic lifters, also called mechanical jacks, are used on their own or with others, which are possibly coupled to each other (in order to only have to operate a single handle) to move a load or lift

and support a feature (lighting, video, mechanical system).

They can also be integrated into a construction or a machine to operate a mechanical system (min force of 15 kg).



REQUEST A QUOTE

SIMPLER AND SAFER USE

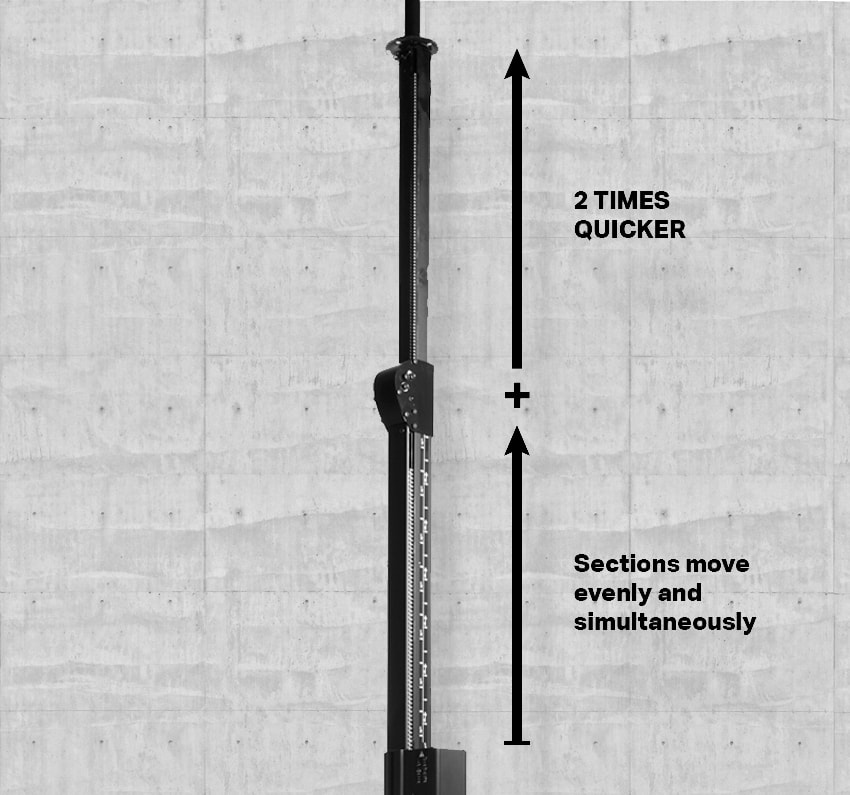

Unlike a design with a cable requiring return pulleys which are the source of significant frictions and which, as the cable is wound on the winch drum, increases the force on the handle, the Goliath system requires a reduced and constant force (approximately 7 kg force/force reduced by 30 to 70%). The integrated brake mechanism greatly reduces, for its part, frictions during load lowering, requiring a minimum force on the handle (approximately 4 kg force). Combined with a very efficient reduction system, Goliath jacks deploy their top modules simultaneously. The absence of pin on each module thanks to the automatic fall arrest safety system makes the operation simple and extremely fast. Top modules are automatically the same length for optimal safety (compulsory and common rule to all lifting systems).

The wear and tear of a cable, whose service life is significantly inferior to that of the winch, is directly linked to the torsion of the latter under the load stress during its winding, and it can potentially be crushed when the winch pinions are not protected (despite the regulation in force). Given the exposure to a possible fall risk (especially when safeguards are not in place), it is compulsory to regularly check and replace the lifter cable, which is not easy to do.

The Goliath rack and pinion system eliminates risks and maintenance operations associated with cable deterioration.

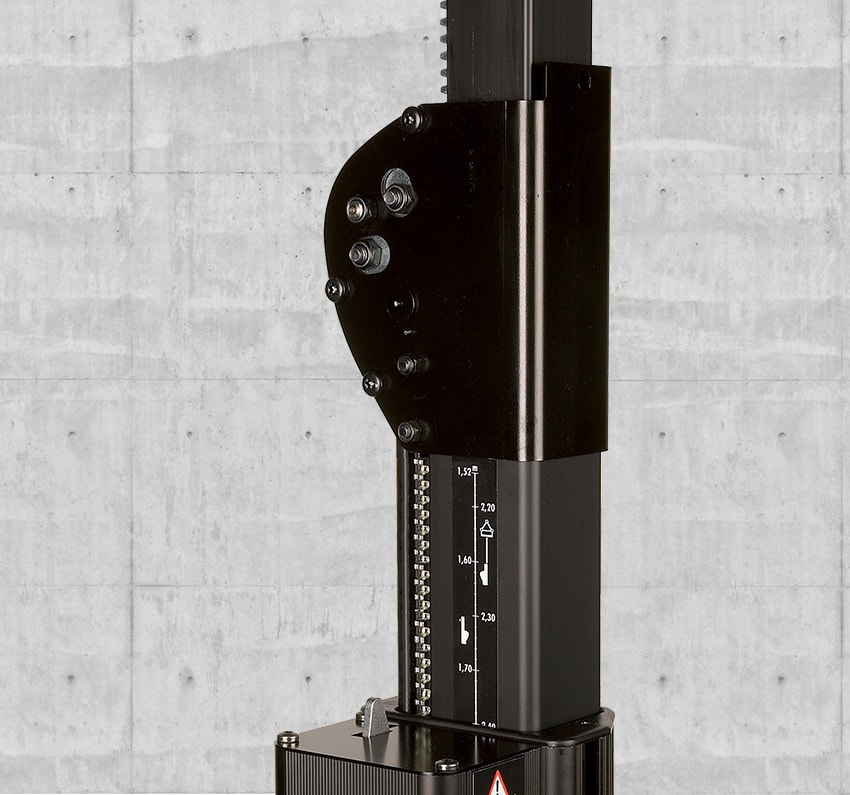

Finally, a fall arrest safety system automatically secures top modules.

All the Goliath mast range is compliant with European regulations, standards and recommendations (especially: Directives 2006/42/EC, standards EN12100-2010, EN13157+A1, Regulations BGVC1 and BGG912, DIN 15560-27:2006). They also received the corresponding EC and GS certificates.

DESIGN

Goliath Studio stands were designed to be light and powerful. Made from black anodised aluminium profiles, they are approximately 30% lighter, for easy transport and handling while maintaining anexcellent protection level against corrosion and a very attractive design.

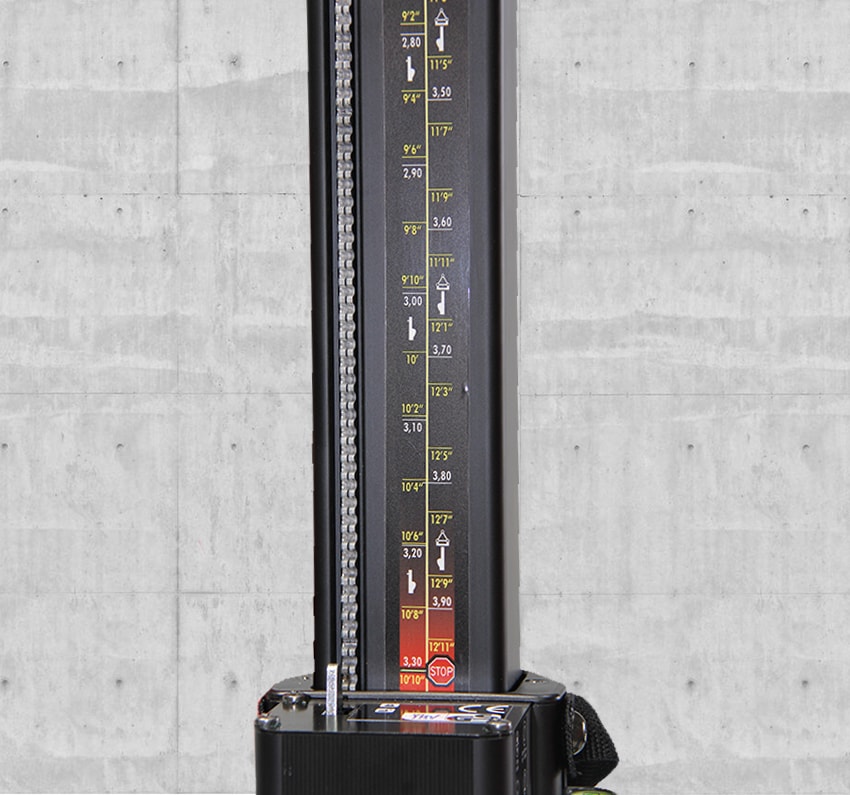

They are also equipped with a graduated scale making an accurate positioning of the structure possible and facilitating the simultaneous adjustment of several lifters to the nearest centimetre. The positioning height can directly be read on the scale at the intersection of the 2 first modules.

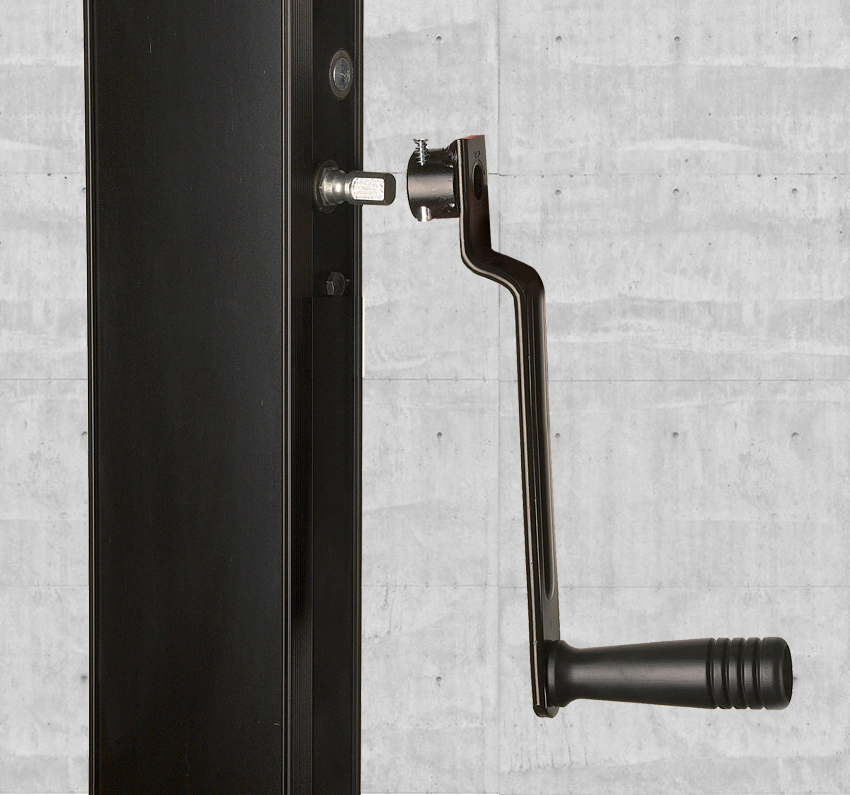

Our lifters are also equipped with a removable handle in order to prevent any unauthorised handling. The handle can be removed at any time without risk, whether the lifter is deployed or not, whether it bears a load or not.

A COMPLETE RANGE OF ACCESSORIES

The Goliath PRO lifts have a full range of accessories.

Fixing for the telescopic mast

Each lifters model has an adjustable sliding system that is positioned on the module 1. These slides have 3 or 4 mounting points depending on the models, which allow to couple the lifter to its support.

Module 1 of the P4000 / 4700/5200 models also have longitudinal locking grooves for captive nut M8.

Alternatively Goliath offers omega fixation.

Connection at the masthead

The upper module of the Goliath telescopic masts is an aluminum profile that allows the positioning of a round tube of external diameter of 28mm (B series) or 35mm (P series).
A transverse hole allows the positioning of a screw or a locking pin:

Goliath also offers the following accessories:

  • Male adapter 28 / 35mm, 35 / 35mm and 35 / 28mm
  • Adjustable 500 mm extension module for B or P series that increases lift height
  • Custom coupling bar: to operate 2 masts simultaneously.


CONTACT US FOR YOUR CUSTOMIZED SOLUTION
